- material: aluminium
- 700x45C max.WHS
- 100x12/142x12mm axle standard
- BSA bottom bracket standard
Rahmengrössen XS, S, M, L, XL

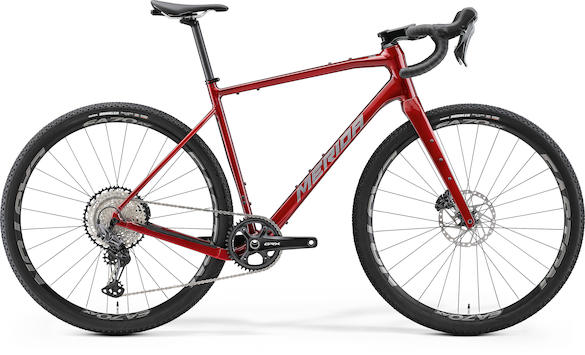

Farbe DARK STRAWBERRY (GREY/RED)
- Tapered
- material: carbon
- 700x47C max. wheelsize
Schaltwerk Shimano GRX822
- 42 teeth
- 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL
Schalthebel Shimano GRX820
- Hydraulic disc
- 180mm
- 160mm
Bremshebel Shimano GRX820
Steuersatz Acros ICR MERIDA EXTERNAL neck w/diecast splitring
Innenlager Shimano SM-BBR60
Spacer 2*10mm, 1*2.5mm
Griffe MERIDA ROAD Expert
- 10-51 teeth
- 12 speed
- 100x12mm width front hub
- 142x12mm width rear hub *24mm inner width
- 20mm height
- Centerlock
- material: aluminium
- including removable lever
- 6/4mm allen key
- 700x45C
- fold
- TR
- EXO
Kette Shimano M7100
- 27.2mm diameter
- 15mm setback
- Carbon
- 6% recycled and 23% nature material
- V-mount
- incl. MERIDA minitool
Sattelklemme MERIDA EXPERT
| Rahmengröße | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 460 | 490 | 520 | 550 | 580 |
| TT Oberrohrlänge (mm) | 550 | 565 | 580 | 600 | 620 |
| CS Hinterbaulänge (mm) | 430 | 430 | 430 | 430 | 430 |
| HTA Steuerrohrwinkel (°) | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| STA Sitzrohrwinkel effektiv (°) | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| BD Tretlagerabsenkung (mm) | 75 | 75 | 75 | 75 | 75 |
| HT Steuerrohrlänge (mm) | 130 | 150 | 170 | 190 | 210 |
| FL Gabeleinbaulänge (mm) | 415 | 415 | 415 | 415 | 415 |
| R Reach (mm) | 392 | 402 | 412 | 426 | 441 |
| S Stack (mm) | 570 | 588 | 607 | 626 | 645 |
| WB Radstand (mm) | 1048 | 1065 | 1082 | 1104 | 1126 |
| SH Überstandshöhe (mm) | 744 | 771 | 798 | 825 | 852 |
