- 143mm suspension travel 29"
- material: carbon
- 29x2.5" max. wheelsize
- 148x12mm axle standard
- BSA bottom bracket standard
Rahmengrössen XShort, Short, Mid, Long, XLong

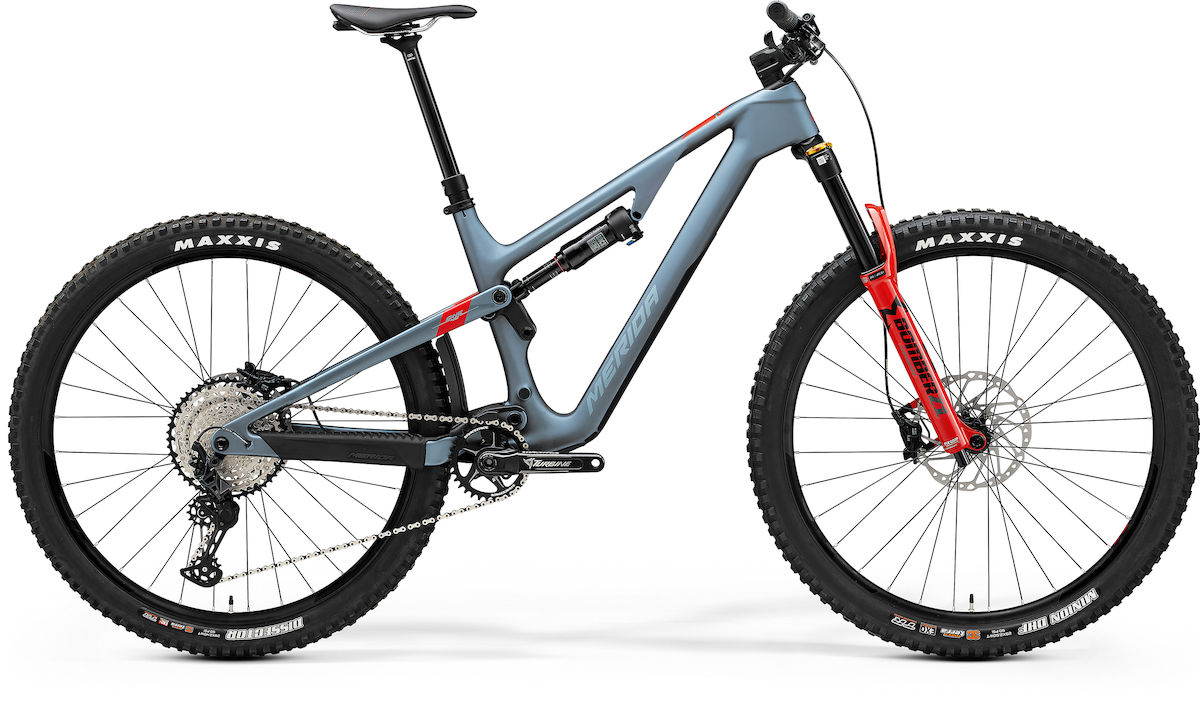

Farbe SILK STEEL BLUE (BLUE/RACE RED)
- Air
- 150mm suspension travel
- Tapered
- 44mm fork offset
- 29x2.6" max. wheelsize
- 32 teeth
- 170 mm-S, 175 mm-M up
- Multi Release
- 4 piston
- 203 mm
Steuersatz MERIDA 8151
Innenlager BB, BSA 73mm– Ø30mm, Ext. Seal
Spacer 2*HTW-301-10mm, 1*HTW-301-5mm
Griffe MERIDA EXPERT EC
- 10-51 teeth
- 12 speed
- 29mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub, 32 spoke holes
- Centerlock
- including removeable lever, 6/4mm allen key
Speichen Double Butted Black stainless
- 29x2.5"
- fold
- TR EXO 3C MaxxTera
- 29x2.4"
- fold
- TR EXO+ MaxxTerra
Kette KMC X12
Kettenschutz MERIDA EXPERT TR ISCG05
- 34.9mm diameter
- 10mm setback
- 30-230mm travel seatpost
- V-mount
- incl. MERIDA minitool
Sattelklemme MERIDA EXPERT
weighed at frame size MID
Zulässiges Gesamtgewicht 135 kg
| Rahmengröße | XShort | Short | Mid | Long | XLong |
| Laufradgröße | 29" | 29" | 29" | 29" | 29" |
| ST Sitzrohrlänge (mm) | 400 | 410 | 425 | 445 | 470 |
| TT Oberrohrlänge (mm) | 532 | 559 | 586 | 618 | 649 |
| CS Hinterbaulänge (mm) | 437.5 | 437.5 | 437.5 | 437.5 | 437.5 |
| HTA Steuerrohrwinkel (°) | 65 | 65 | 65 | 65 | 65 |
| STA Sitzrohrwinkel effektiv (°) | 80 | 80 | 80 | 80 | 80 |
| BD Tretlagerabsenkung (mm) | 35 | 35 | 35 | 35 | 35 |
| HT Steuerrohrlänge (mm) | 95 | 95 | 95 | 105 | 120 |
| FL Gabeleinbaulänge (mm) | 557 | 557 | 557 | 557 | 557 |
| R Reach (mm) | 426 | 453 | 480 | 509 | 535 |
| S Stack (mm) | 607 | 607 | 607 | 616 | 629 |
| WB Radstand (mm) | 1177 | 1204 | 1232 | 1265 | 1298 |
| SH Überstandshöhe (mm) | 722 | 725 | 732 | 731 | 771 |
