- material: aluminium
- 700x35C max. wheelsize
- 100x9/135x9mm axle standard
- BSA bottom bracket standard
Rahmengrössen XXS, XS, S, M, L, XL

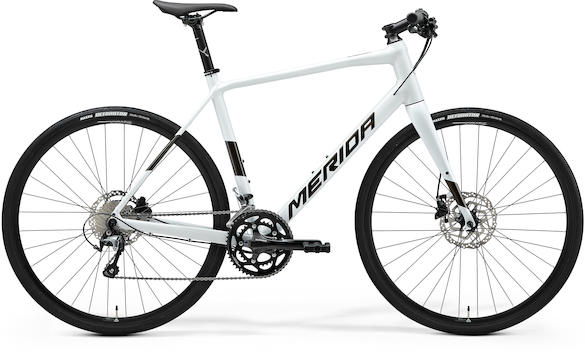

Farbe PEARL WHITE (GUARDED GOLD)
- Tapered
- material: carbon
- 700x35C max. wheelsize
- 50-34 teeth
- 170 mm-XXS/XS/S/M, 175 mm-L/XL
Schalthebel Shimano Tiagra
- 2 piston
- 180 mm
Bremshebel Shimano MT200
Steuersatz MERIDA M2331 Neck
Innenlager Shimano BB-RS500 BSA
Spacer attached
Griffe MERIDA Comp EC
- 11-32 teeth
- 10 speed
- 17mm inner width
- 22mm height
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 100x9mm width front hub
- 32 spoke holes
- centerlock
- 135x9mm width rear hub
- 32 spoke holes
- centerlock
Achse QR
Speichen Black stainless
- 700x32C
- wire
Kette KMC X10
Pedale VP VPE-891
Umwerfer Shimano Tiagra
- 30.9mm diameter
- 5mm setback
- material: aluminium
- 28% recycled material
- V-mount
Sattelklemme MERIDA EXPERT
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| Rahmengröße | XXS | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 470 | 500 | 520 | 540 | 560 | 590 |
| TT Oberrohrlänge (mm) | 555 | 561 | 571 | 583 | 597 | 610 |
| CS Hinterbaulänge (mm) | 438 | 438 | 438 | 438 | 438 | 438 |
| HTA Steuerrohrwinkel (°) | 70 | 70.5 | 71 | 71.5 | 72 | 72 |
| STA Sitzrohrwinkel effektiv (°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| BD Tretlagerabsenkung (mm) | 65 | 65 | 65 | 65 | 65 | 65 |
| HT Steuerrohrlänge (mm) | 150 | 160 | 170 | 190 | 215 | 240 |
| FL Gabeleinbaulänge (mm) | 395 | 395 | 395 | 395 | 395 | 395 |
| R Reach (mm) | 389 | 392 | 398 | 404 | 410 | 416 |
| S Stack (mm) | 562 | 573 | 585 | 606 | 631 | 655 |
| WB Radstand (mm) | 1051 | 1053 | 1058 | 1066 | 1075 | 1088 |
| SH Überstandshöhe (mm) | 744 | 769 | 787 | 806 | 828 | 855 |
