- material: carbon
- 700x35C max./ 700x32C (with fender) max. wheelsize
- 100x12/ 142x12mm axle standard
- BB86 bottom bracket standard
Rahmengrössen XS, S, M, L, XL

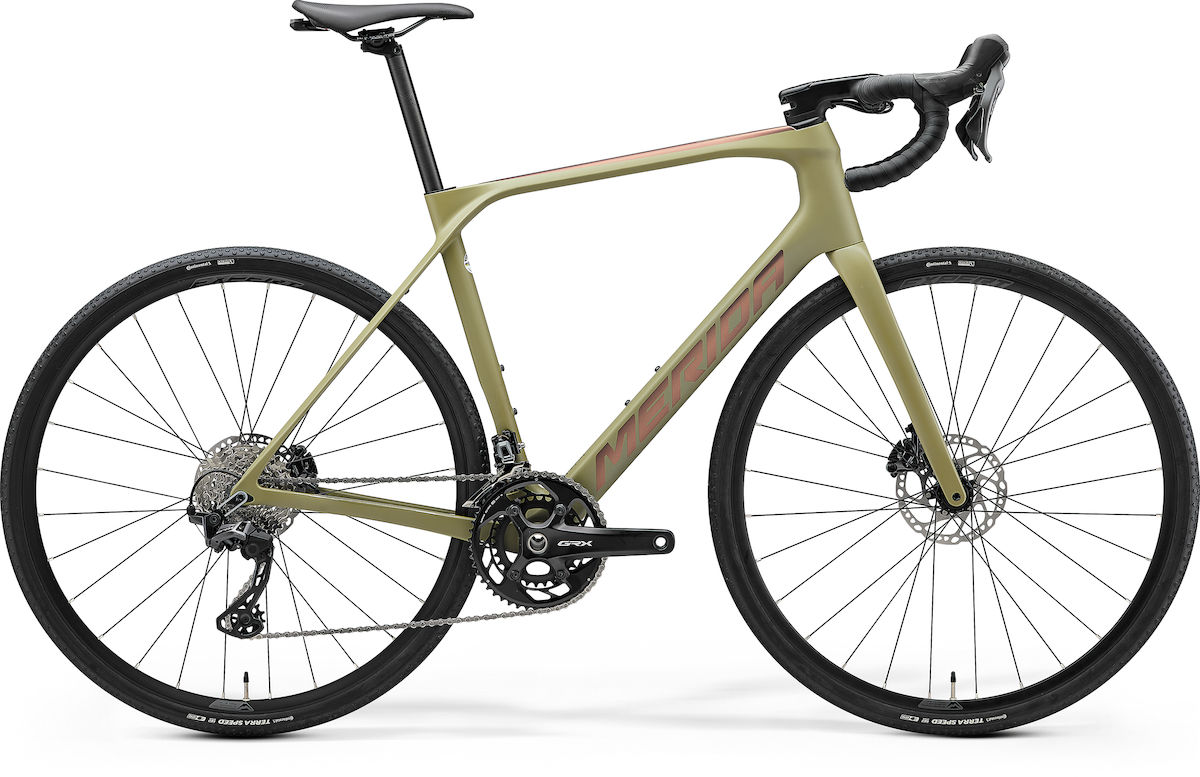

Farbe SILK LOW KEY GREEN (BRONZE)
- material: carbon
- 700x35C max. wheelsize
Schaltwerk Shimano GRX820
- 48-31 teeth
- 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
Schalthebel Shimano GRX820
- Hydraulic disc
- 160mm
Bremshebel Shimano GRX820
- VP-MRBHB (SE-301 neck)
- Pressfit 86.5
Spacer TEAM ONE-PIECE INTEGRATED
Griffe MERIDA ROAD Expert
- 11-36 teeth
- 12 speed
- 23mm inner width
- 19mm height
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12-142mm width rear hub
- 28 spoke holes
- Centerlock
- including removable lever
- 6/4mm allen key
Speichen Double Butted Black stainless
- 700x35C
- fold
Kette Shimano M6100-12
Umwerfer Shimano GRX820
- 27.2mm diameter
- 15mm setback
- Carbon
- 28% recycled material
- V-mount
- incl. MERIDA minitool
Sattelklemme MERIDA EXPERT
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| Rahmengröße | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 470 | 490 | 510 | 530 | 560 |
| TT Oberrohrlänge (mm) | 524 | 538 | 553 | 568 | 583 |
| CS Hinterbaulänge (mm) | 418 | 418 | 418 | 418 | 418 |
| HTA Steuerrohrwinkel (°) | 71 | 72 | 73 | 73 | 73.5 |
| STA Sitzrohrwinkel effektiv (°) | 74 | 74 | 73.5 | 73.5 | 73.5 |
| BD Tretlagerabsenkung (mm) | 66 | 66 | 66 | 66 | 66 |
| HT Steuerrohrlänge (mm) | 152 | 161 | 177 | 197 | 222 |
| FL Gabeleinbaulänge (mm) | 380 | 380 | 380 | 380 | 380 |
| R Reach (mm) | 366 | 376 | 380 | 389 | 397 |
| S Stack (mm) | 552 | 565 | 584 | 603 | 629 |
| WB Radstand (mm) | 997 | 1001 | 1001 | 1017 | 1026 |
| SH Überstandshöhe (mm) | 767 | 785 | 803 | 823 | 852 |
