- material: carbon
- 700x30C max. wheelsize
- 100x12/ 142x12mm axle standard
- Pressfit 86,5
Rahmengrössen XXS, XS, S, M, L, XL

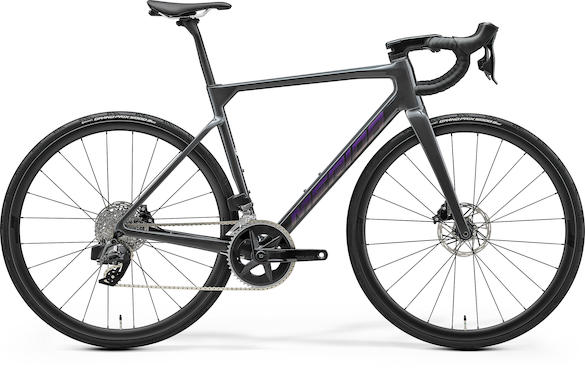

Farbe DARK GREY (PURPLE)
- material: carbon
- 700x30C max. wheelsize
- 48-35 teeth
- Power Meter
- 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),
Schalthebel Sram Rival eTAP AXS HRD
- Hydraulic disc
Bremshebel Sram Rival eTap AXS
- VP-MRBHB (OP-203 neck)
- Pressfit 86.5
Spacer TEAM ONE-PIECE INTEGRATED
Griffe MERIDA ROAD Expert
- 10-36 teeth
- 12 speed
- 100x12mm width front hub
- 142x12mm width rear hub
- 19mm inner width
- 30mm height
- Centerlock
- material: carbon
- including removable lever
- 6/4mm allen key
- 700x28C
- fold
- tubeless ready
Kette Sram Rival 12s
Umwerfer Sram Rival eTap AXS
- 27.2mm diameter
- 15mm setback
- Carbon
- S-Flex
- 6% recycled and 23% nature material
- V-mount
- incl. MERIDA minitool
Sattelklemme MERIDA EXPERT
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Zulässiges Gesamtgewicht 120 kg
| Rahmengröße | XXS | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 435 | 458 | 481 | 501 | 521 | 550 |
| TT Oberrohrlänge (mm) | 520 | 535 | 545 | 560 | 575 | 590 |
| CS Hinterbaulänge (mm) | 408 | 408 | 408 | 408 | 408 | 408 |
| HTA Steuerrohrwinkel (°) | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| STA Sitzrohrwinkel effektiv (°) | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| BD Tretlagerabsenkung (mm) | 70 | 70 | 66 | 66 | 66 | 66 |
| HT Steuerrohrlänge (mm) | 105 | 112 | 128 | 140 | 155 | 176 |
| FL Gabeleinbaulänge (mm) | 385 | 385 | 385 | 385 | 385 | 385 |
| R Reach (mm) | 377 | 383 | 390 | 395 | 400 | 409 |
| S Stack (mm) | 517 | 529 | 542 | 557 | 571 | 593 |
| WB Radstand (mm) | 985 | 982 | 989 | 990 | 1000 | 1010 |
| SH Überstandshöhe (mm) | 721 | 745 | 765 | 782 | 800 | 823 |
