Weitere Informationen zu diesem Artikel finden Sie auf der
Homepage des Herstellers.
- material: aluminium
- 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize
- 100x9/135x9mm axle standard
- BSA bottom bracket standard
Rahmengrössen XS, S, M, L, XL

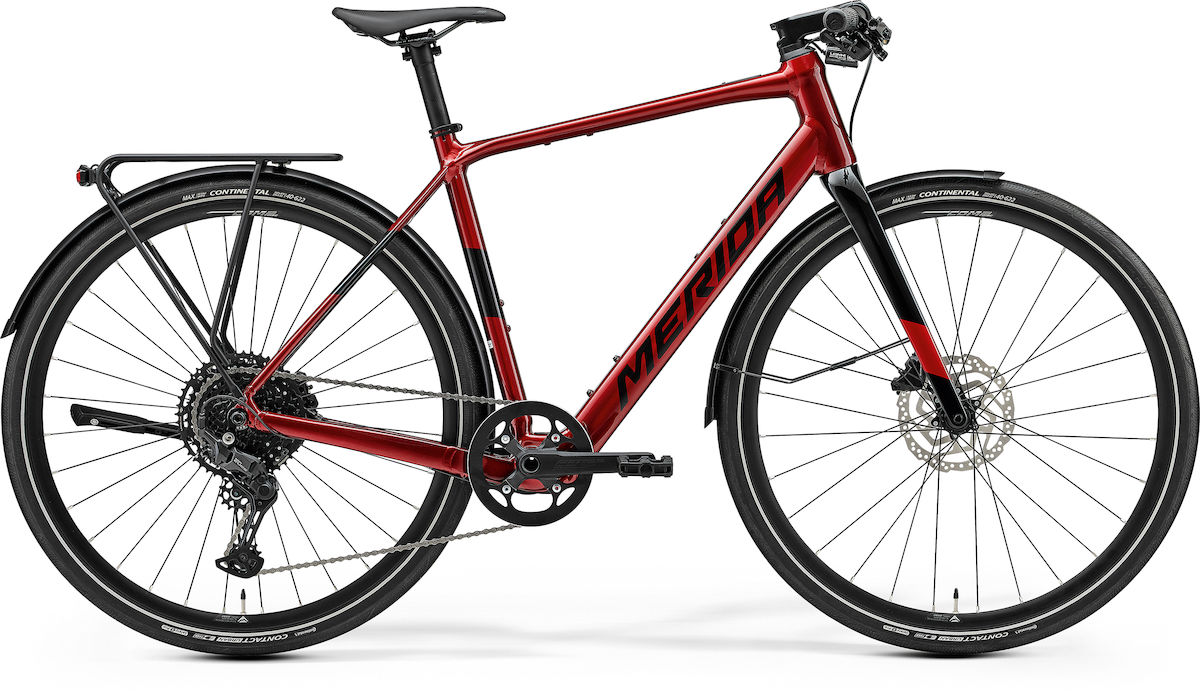

Farbe DARK STRAWBERRY (BLACK)
- carbon
- max. 700x40C (with fender) wheelsize
- 42 teeth
- 165mm over all sizes
Schalthebel Shimano CUES U6000
- 2 piston
Steuersatz MERIDA 8158
Griffe MERIDA COMP EC
- 11-48 teeth
- 10 speed
- 17mm inner width
- 22mm height
- material: aluminium
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
Achse MERIDA EXPERT SL
Speichen Black stainless
- 700Cx40
- wire
Kette Shimano LG500
Pedale VP VPE-891
- material: carbon
- 30.9mm diameter
- 0mm setback
- 28% recycled material
- V-mount
Sattelklemme MERIDA EXPERT
Gepäckträger Massload CL-645
Schutzbleche SW-FA-311-45FARE1 with SW503F1, fender stay SW-FV-513, 807B ???, alloy rail: SW809-01
Parkstütze Atranvelo ED-100-PC
Scheinwerfer Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount
Rücklicht Lezyne E-Bike Super Bright STVZO
Motor Mahle X30
- integrated
Switch Mahle iWoc ONE
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| Rahmengröße | XS | S | M | L | XL |
| Laufradgröße | 28" | 28" | 28" | 28" | 28" |
| ST Sitzrohrlänge (mm) | 470 | 490 | 510 | 530 | 560 |
| TT Oberrohrlänge (mm) | 525 | 540 | 555 | 570 | 585 |
| CS Hinterbaulänge (mm) | 431 | 431 | 431 | 431 | 431 |
| HTA Steuerrohrwinkel (°) | 69.5 | 70 | 70.5 | 71 | 71.5 |
| STA Sitzrohrwinkel effektiv (°) | 75 | 75 | 75 | 75 | 75 |
| BD Tretlagerabsenkung (mm) | 70 | 70 | 70 | 70 | 70 |
| HT Steuerrohrlänge (mm) | 145 | 160 | 175 | 190 | 205 |
| FL Gabeleinbaulänge (mm) | 400 | 400 | 400 | 400 | 400 |
| R Reach (mm) | 374 | 384 | 395 | 406 | 416 |
| S Stack (mm) | 565 | 581 | 597 | 613 | 629 |
| WB Radstand (mm) | 1032 | 1044 | 1055 | 1066 | 1076 |
| SH Überstandshöhe (mm) | 748 | 767 | 785 | 804 | 830 |
