- material: aluminium
- 29"x2.4" with fender max. wheelsize
- 148x12mm axle standard
- intube
Rahmengrössen S, M, L, XL

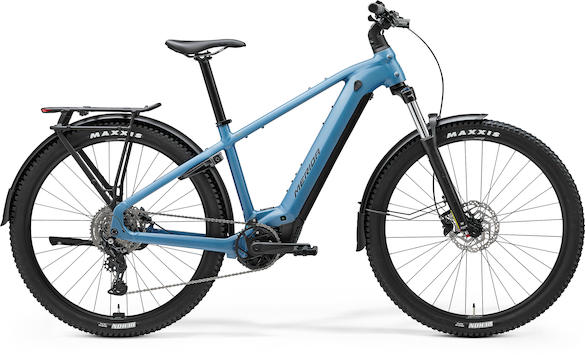

Farbe SILK DOVE BLUE (BLACK)
- Coil
- 120mm suspension travel
- 29x2.4" max wheelsize
- 165mm for all sizes
Schalthebel Shimano Cues U4000-9
- 2 piston
- 180mm
Steuersatz Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Griffe MERIDA EXPERT EC
- 11-46 teeth
- 9 speed
- 110x15mm width front hub
- 148x12mm width rear hub
- 28mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 29"
- 15x100mm width front hub
- 32 spoke holes
- Centerlock
- 12x148mm width rear hub
- 32 spoke holes
- Centerlock
- including removeable lever, 6/4mm allen key
Speichen Black stainless
- 29x2.4"
- wire
Kette Shimano LG500
Pedale VP VPE-891
- material: aluminium
- 34.9mm diameter
- 0mm setback
*24% recycled material V-mount
Sattelklemme MERIDA EXPERT
Gepäckträger MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Schutzbleche Sunnywheel SW-FA311-70A/ SW-FA311-70E1
Parkstütze Atranvelo ED-100-PC
- reverse MERIDA Custom Mount
Rücklicht Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Motor Bosch Performance Line CX
- removeable
Display Bosch Purion 200
| Rahmengröße | S | M | L | XL |
| Laufradgröße | 29" | 29" | 29" | 29" |
| ST Sitzrohrlänge (mm) | 380 | 430 | 480 | 530 |
| TT Oberrohrlänge (mm) | 588 | 605 | 625 | 645 |
| CS Hinterbaulänge (mm) | 475 | 475 | 475 | 475 |
| HTA Steuerrohrwinkel (°) | 67.5 | 67.5 | 67.5 | 67.5 |
| STA Sitzrohrwinkel effektiv (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| BD Tretlagerabsenkung (mm) | 62.5 | 62.5 | 62.5 | 62.5 |
| HT Steuerrohrlänge (mm) | 115 | 120 | 130 | 140 |
| FL Gabeleinbaulänge (mm) | 538 | 538 | 538 | 538 |
| R Reach (mm) | 408 | 425 | 441 | 459 |
| S Stack (mm) | 647 | 651 | 661 | 670 |
| WB Radstand (mm) | 1176 | 1194 | 1215 | 1237 |
| SH Überstandshöhe (mm) | 729 | 758 | 759 | 760 |
| Str Stack To Reach Ratio Pc | 1.58 | 1.53 | 1.49 | 1.45 |
| Seat Post Mounting Depth Max Mm | 225 | 300 | 300 | 300 |
