- material: carbon
- 150mm suspension travel
- 27.5x2.8" max. wheelsize
- 148x12mm axle standard
- intube
- max. 630 Wh
Rahmengrössen XS, S, M, L, XL

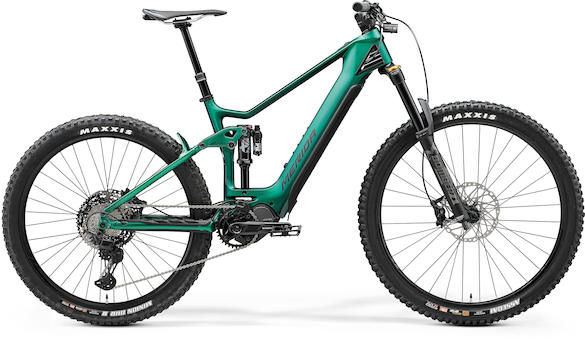

Farbe SILK EVERGREEN (BLACK)
- Air
- 160mm suspension travel
- Tapered
- 51mm fork offset
- 29x2.6" max wheelsize
- platform
- 34 teeth
Schaltwerk Shimano XT RDM8130 Shadow+ 11
- 165mm
Schalthebel Shimano SL -MT500-IL / Shimano XT M8130 11
- 4 piston
Steuersatz MERIDA-8152
Spacer ACS92, 5mm*3
Griffe MERIDA EXPERT EC
Schalthebelklemme JAGWIRE FLEX-SL:CP
- 11-50 teeth
- 11 speed
- 29mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 36 spoke holes
- Centerlock
- including removeable lever, 6/4mm allen key
Speichen Black stainless
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 27.5x2.6 "
- fold
- 3C EXO+ TR
Kette CNLG500
Pedale VP VPE-527
- 30.9mm diameter
- 0mm setback
- XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
- V-mount
Sattelklemme MERIDA EXPERT clamp
Schutzbleche C093-02F + C093-02R
Scheinwerfer LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Rücklicht USB REAR Light CG-214RG
- 85Nm
- 630Wh Shimano EN805 504Wh for XS only
Display Shimano SC-EN600
Switch Shimano SW-EN600-L
| Rahmengröße | XS | S | M | L | XL |
| Laufradgröße | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST Sitzrohrlänge (mm) | 405 | 420 | 440 | 470 | 500 |
| TT Oberrohrlänge (mm) | 563 | 584 | 605 | 629 | 652 |
| CS Hinterbaulänge (mm) | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA Steuerrohrwinkel (°) | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| STA Sitzrohrwinkel effektiv (°) | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| BD Tretlagerabsenkung (mm) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| HT Steuerrohrlänge (mm) | 110 | 115 | 120 | 135 | 150 |
| FL Gabeleinbaulänge (mm) | 571 | 571 | 571 | 571 | 571 |
| R Reach (mm) | 400 | 420 | 440 | 460 | 480 |
| S Stack (mm) | 628.5 | 633 | 637.5 | 651.5 | 665 |
| WB Radstand (mm) | 1168 | 1190 | 1212 | 1238.5 | 1265 |
| SH Überstandshöhe (mm) | 742 | 737 | 733 | 740 | 754 |
