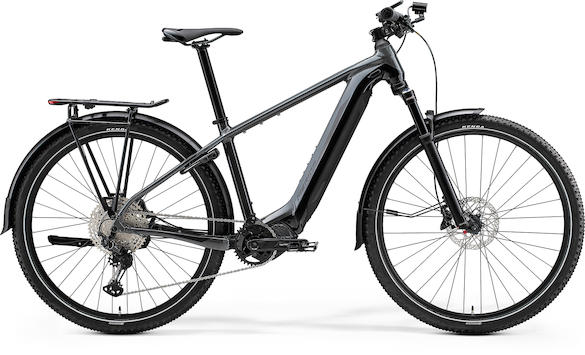

| Modell | eBIG.NINE 700 EQ EP2 |
| Farbe | Grau/Schwarz |
| Rahmen | eBIG.NINE LITE III- material: aluminium
|
| Motor | Shimano EP8- 85Nm |
| Display | Shimano SC-E6100 |
| Batterie | Shimano E8036- 630Wh |
| Ladegerät | Shimano EC-E8004- 4A charging current |
| (Feder-)gabel | Suntour RAIDON34 LOR- Air
|
| Bremse (V/H) | Shimano M4100- 4 piston |
| Bremsscheibe (V/H) | Shimano RT30/Shimano RTEM300- 180 mm |
| Kurbelgarnitur | Shimano CRE70-12-B- 36 teeth
|
| Gänge | 1 x 12 |
| Schalthebel hinten | Shimano DEORE M6100 12 |
| Schaltwerk | Shimano XT RDM8100 Shadow+ 12 |
| Kassette | Shimano M6100- 10-51 teeth
|
| Kette | CN-M6100 |
| Lenker | MERIDA EXPERT CC- material: aluminium
|
| Griffe | MERIDA EXPERT TK |
| Vorbau | MERIDA EXPERT CT- material: aluminium
|
| Steuersatz | MERIDA-8155 (for the steerer 1-1/8"~1.5") |
| Sattel | MERIDA EXPERT TK |
| Sattelstütze | MERIDA EXPERT CC- material: aluminium
|
| Reifen (V/H) | KENDA Booster- 29x2.2"
|
| Nabe (V/H) | Shimano SLX- 110x15mm width front hub
|
| Felge (V/H) | MERIDA COMP CC- 20mm inner width
|
| Innenlager | included |
| Pedale | VP VPE-527 |
| Scheinwerfer | LEZYNE E-BIKE POWER STVZO E115, X-Lock stem mount |
| Rücklicht | Spanninga Commuter GLOW XE |
| Gepäckträger | MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE |
| Schutzbleche | Sunnywheel SW-FA311-65A/ SW-FA311-65E1 |
| Parkstütze | CL-KA98, 29" |
| Zubehör | MERIDA Multitool mit Saddlebox |
| Gewicht | 23,84 kgweighed with 29" wheels and at frame size M |
